TOUCHSCREEN RF SPECTRUM ANALYSER FOR WIRELESS AUDIO
RF Explorer Pro includes advanced modes such as Zero Span, Waterfall 2D and 3D views and Power Channel, offering enhanced flexibility to handle a wide range of scenarios in any venue.
- Built-in Frequency Coordination: The high-performance CPU enables fast frequency coordination calculations, real-time interference monitoring, and intermodulation analysis right out of the box.
- Record/Save/Replay Spectrum Data: Automatically save scan data on RAM for easy replay of any event. Additionally, the data can be manually or automatically saved in binary and CSV formats for later use.
- VNC Capable for Remote Network Control: Control the RF Explorer Pro over a network connection, simply connect a USB to Ethernet adapter and configure over VNC
- Continuous Monitoring and Alerting: Stay informed with reliable alerts, including configurable limit lines, to ensure you never miss critical issues during an event.
- Export Data: Seamlessly export all captured data to a USB drive for use in other software applications such as RF Venue's free online Wireless System Builder, Shure® Wireless Workbench, Audio Technica® Wireless Manager, Excel and more.
Additionally RF Explorer Pro includes a dedicated WiFi Analyser mode built-in for working with wireless data networks and the increasing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyser mode lets you quickly visualise these often-congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.
• SMA Spectrum analyser input: Interface with BNC adapter or jumper cable to analyse RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fibre converters or other sources to directly measure performance of your system, debug issues, and fine tune performance.
• HDMI output: Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range.

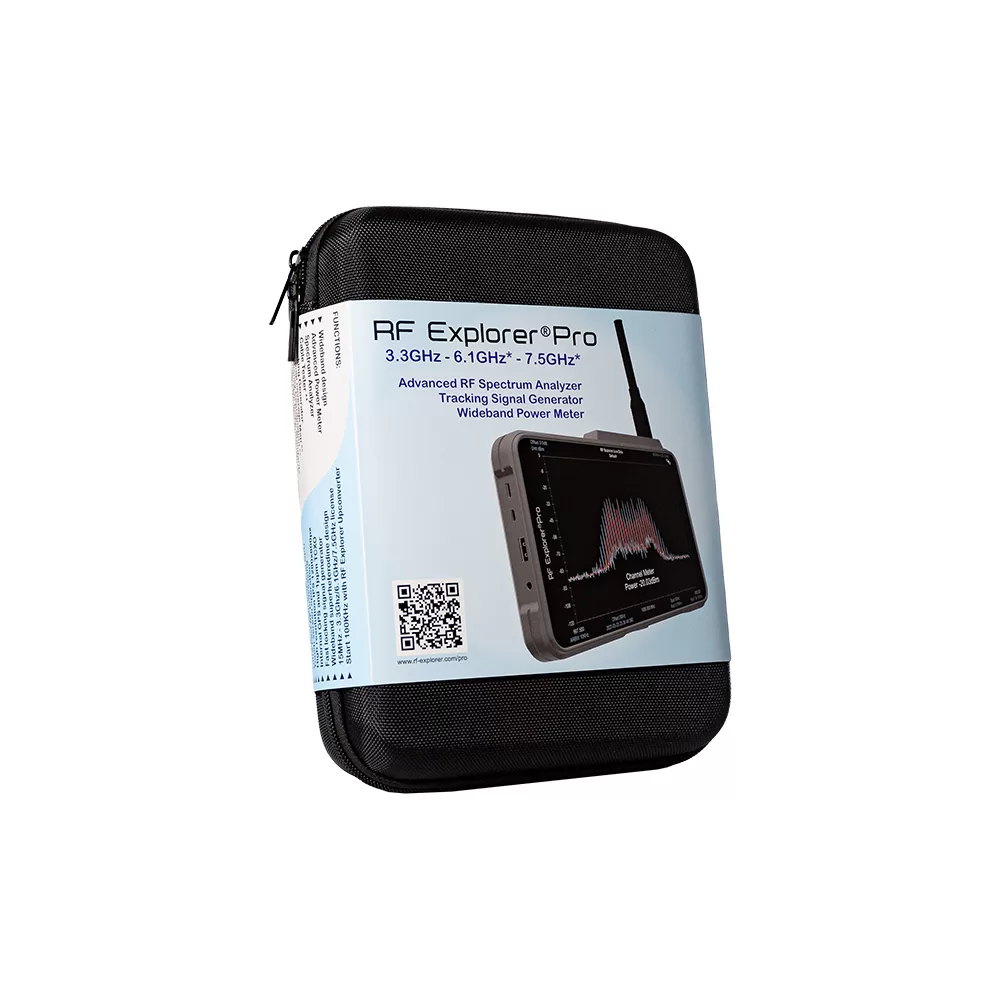

- USB charger and padded carrying case included.
Optionally order licenses to enhance capabilities of your RF Explorer Pro here.
