FULLSIZE THREE-WAY LINE ARRAY SYSTEM
VTX-V25
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
2/3/5 Years WARRANTY

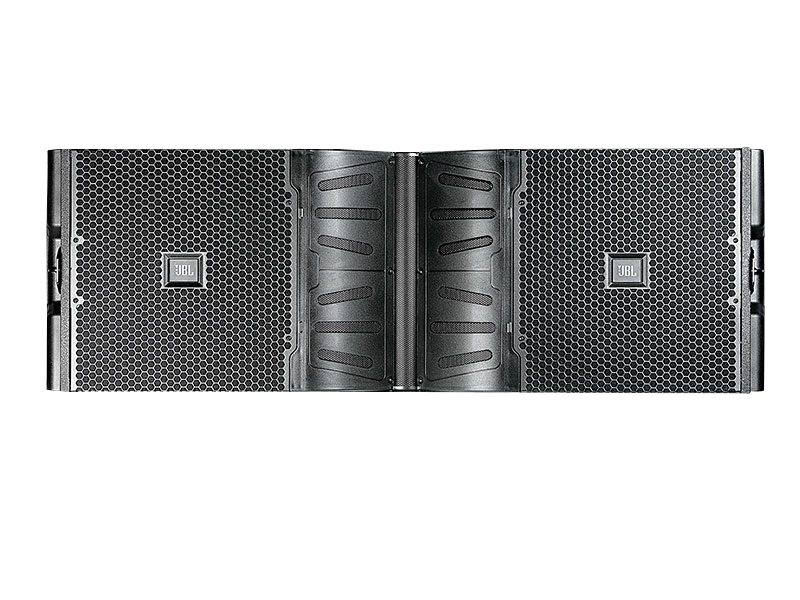

The VTX V25 is a full size 3-way high-directivity line array element. The VTX V25 features two 2000W 15" Differential Drive® woofers mounted in die cast aluminum baffles, with four 8" Differential Drive midrange transducers and three of ...

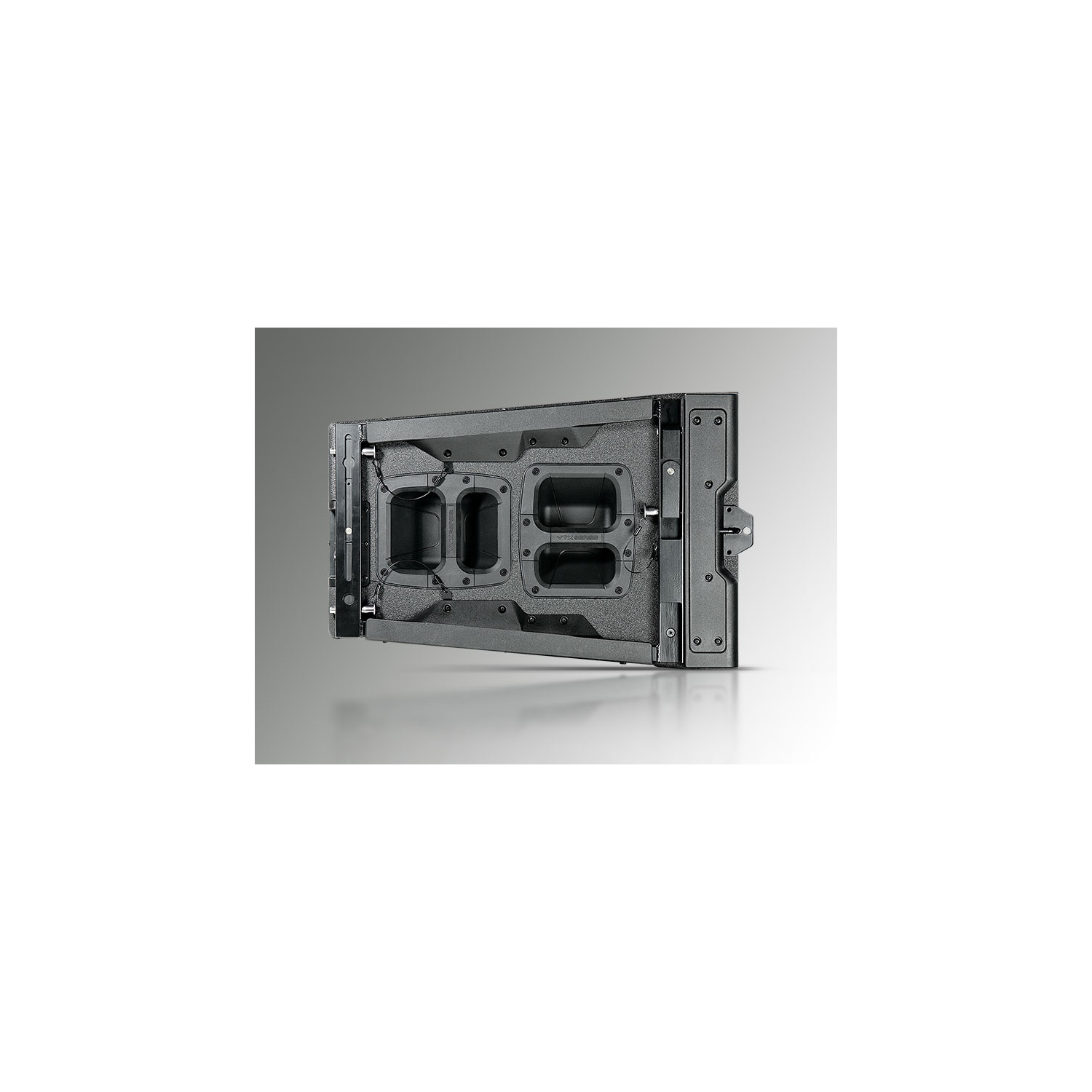

The VTX V25 is a full size 3-way high-directivity line array element. The VTX V25 features two 2000W 15" Differential Drive® woofers mounted in die cast aluminum baffles, with four 8" Differential Drive midrange transducers and three of the revolutionary new D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers mounted on a 3rd generation waveguide and patented RBI – Radiation Boundary Integrator assembly. Patented rigging, Crown VRack DSP and amplification, and JBL HiQnet Performance Manager™ configuration and control software complete the system package.
FEATURES
- D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER Extended HF Reproduction, Smoother Response, Higher Power Handling Lower Distortion, Reduced Power Compression, Increased Dynamic Headroom. The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.
- REFINED RBI WAVEGUIDE IMPROVED HORIZONTAL COVERAGE JBL's patented Radiation Boundary Integrator combines the high frequency and mid-range sections of the VTX V25 so the transition across each band is uninterrupted, undistorted and seamless. A patented, tuned resonant-chamber is integrated into the waveguide itself, effectively eliminating throat-related cancellations due to back pressure from the mid-range section. VTX's refined RBI waveguide implementation provides improved horizontal coverage broader and more stable.
- DIFFERENTIAL DRIVE TECHNOLOGY ENHANCED PERFORMANCE AND DRAMATICALLY REDUCED DRIVER WEIGHT JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion. Heat sinks are integrated into the cast aluminum frame, and the neodymium magnets are placed inside the dual voice coil assembly, completing the magnetic circuit without the heavy surrounding steel structure of conventional drivers.
- S.A.F.E SUSPENSION VTX's patented S.A.F.E. suspension system is streamlined for speed and efficiency with improved hardware for faster setup with fewer pinning operations and greater security. A custom-designed protective cover and dolly makes transport easy and the suspension process fast, efficient and safe. Vertical Transporters are also available allowing for transport of four V25 enclosures or three S28 enclosures in either front-firing or cardioid mode.
- LASER ACCURATE SETUP The LZ laser accessory is a cost-effective installation tool that provides precise focus of VTX V25 arrays for optimum vertical pattern control and audience coverage while streamlining the setup process. A single LZ installed on the top enclosure serves as a visual reference while setting the overall array site angle in accordance with JBL Line Array Calculator (LAC) predictions. Advanced system tuning can deploy multiple LZ lasers for individual array circuits, assisting in physical measurement microphone placement to correspond with virtual measurement microphones shown in LAC.
- SYSTEM INTEGRATION AND MANAGEMENT With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.
