NETLINX NX INTEGRATED CONTROLLER 4/4/4/4
NX-2200
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
3 Years WARRANTY
The NX-2200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining ...

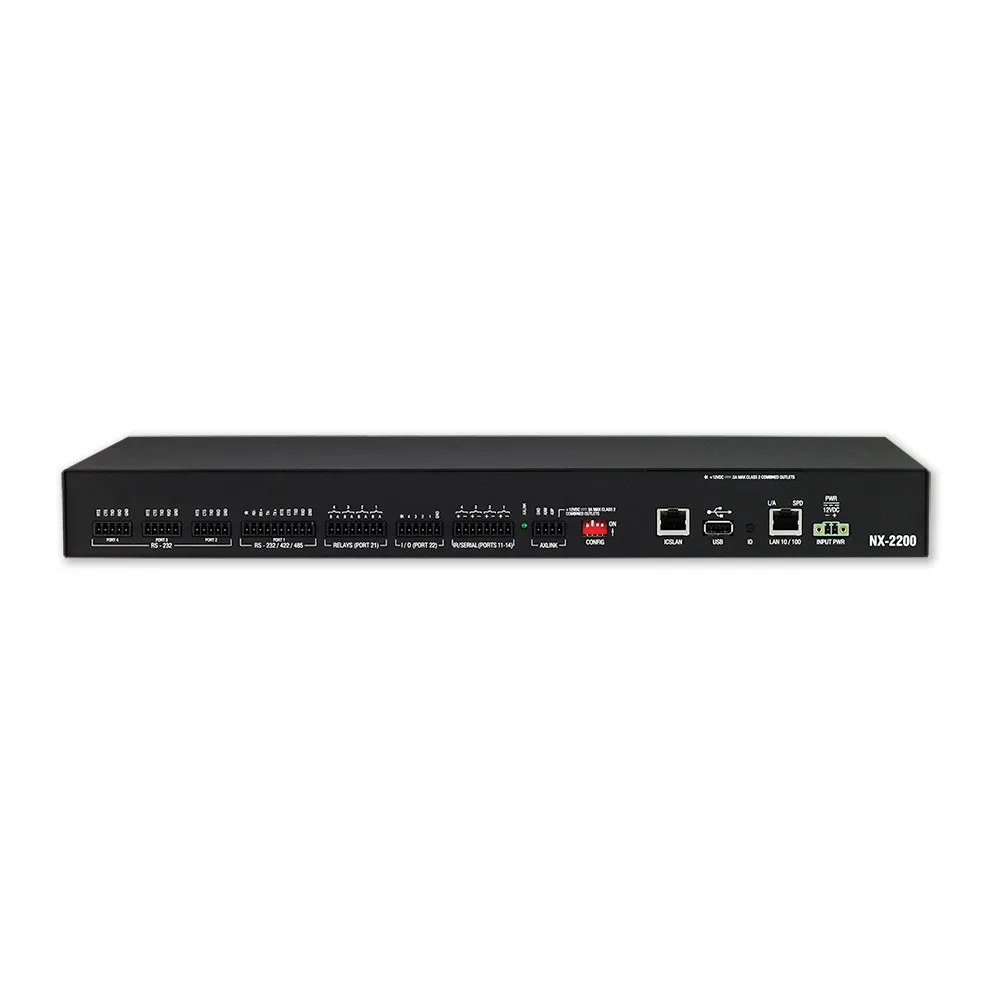

The NX-2200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications, as it includes more ports and security capabilities than the NX-1200.
APPLICATION EXAMPLES
- NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
- The NX-2200 is a good fit for medium-sized conference rooms or classrooms, lecture halls, home theaters, hotel rooms and building environmental systems.
- With enhanced security features like Dual NIC, the NX-2200 provides secure control and monitoring for a medium-sized AV system, HVAC, lights, security, power management, and many similar specialized applications requiring economical control with limited physical ports.
FEATURES
- Dual NIC – The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
- IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
- IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
- X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
- Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
- High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
- Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
- TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
- Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
- Network Syslog – Supports standard device logging to a syslog server
- Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
- File Import / Export From USB Drive – Backup and restore configuration data, program files, and update firmware from a standard USB flash drive
- Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
- Ultra-Fast 1600 MIPS processor
- 512 MB Onboard RAM
- 1 M Non-Volatile Memory
- 8 GB SDHC FLASH Memory
- 1 RU
- 1 AXLink Interface
- 1 10/100 LAN Interface
- 4 Digital I/O Ports
- 1 RS232/422/485 Port
- 3 RS232-Only Port
- 4 IR/Serial Output Ports
- 4 Relay Ports
