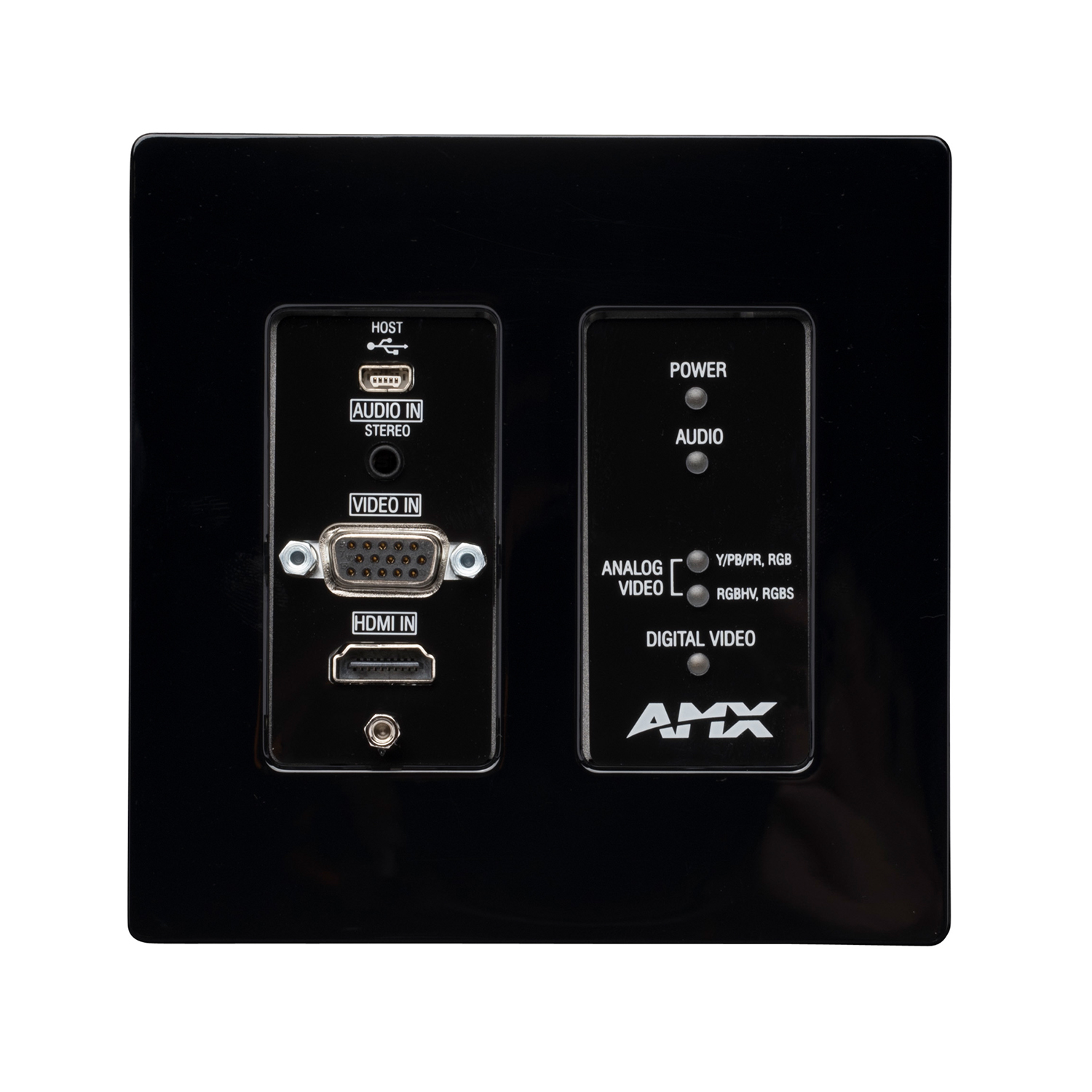

SVSI 1080P NETWORK ENCODER WALLPLATE BLACK

NMX-ENC-N1115-WP-BL
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
3 Years WARRANTY
Minimal Proprietary Compression Video Over IP N1115 MPC Decor Style Wallplate Encoder with KVM. The N1000 Series Encoders and Decoders are an affordable local AV-over-IP switching solution that packetizes video into a minimally compressed IP format ...
Minimal Proprietary Compression Video Over IP N1115 MPC Decor Style Wallplate Encoder with KVM. The N1000 Series Encoders and Decoders are an affordable local AV-over-IP switching solution that packetizes video into a minimally compressed IP format that provides excellent video quality at low latencies. This compression is perfect for point-to-point video distribution, small 2x1 switching applications, and larger switching applications (for example, 32x32), all using off-the-shelf layer-3 network switches.

The NMX-ENC-N1115-WP provides the excellent encoding capabilities of the NMX-ENC-N1133 in a 2-gang wallplate format. This encoder can be easily mounted in a wall, lectern, or floor box using a standard 2-gang US back box, and connected to power and Ethernet using only a single category cable.

Application Examples
  • The NMX-ENC-N1115 is the perfect solution for any application and video matrix smaller than 32x32.
  • Common applications include conference rooms, huddle spaces, and lecterns (inside or adjacent-to)

Features
  • Sub-Frame Latency – Combined encode and decode latency of 10 ms at 60 fps.
  • Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm applied applied to all resolutions
  • Wallplate Form Factor – Fits conveniently into a 2-gang US back box for easy installation in a wall, floor, or lectern.
  • Power Over Ethernet (PoE) – PoE eliminates the need for power supply
  • Unmatched Flexibility – Build point-to-point links, simple 2x1 switches, or cost-effective matrices up to 32x32.
  • Separate Inputs – Separate HDMI and VGA input connectors on the encoder
