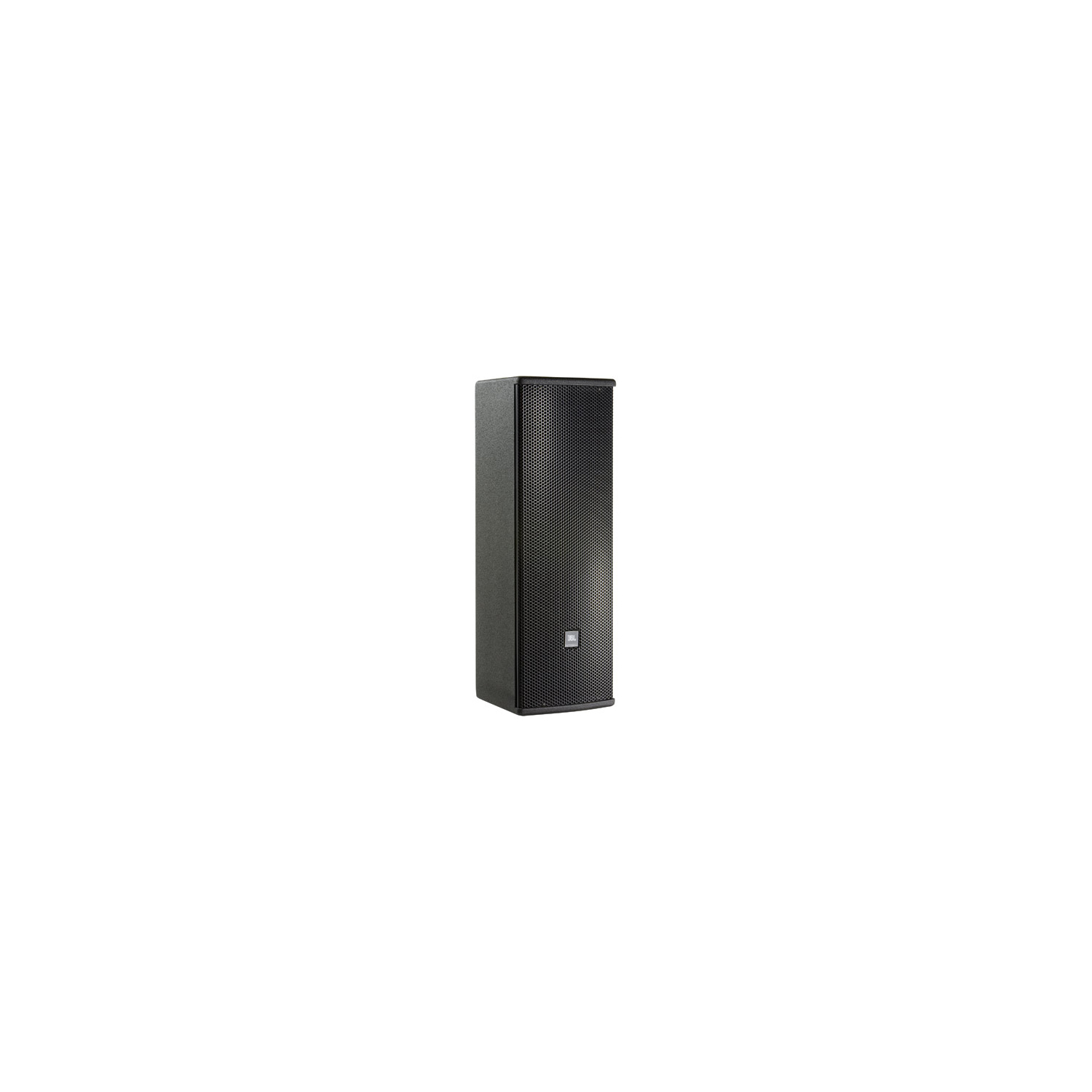

2X 6.5IN 2 WAY 90X90 DEG SPEAKER
AC26
SPECIAL ORDER
Out of stock, please contact JPRO for delivery ETA
2/3/5 Years WARRANTY
An extension of the industry leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility withhigh fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8” loudspeaker systems designed specifically to ...
An extension of the industry leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility withhigh fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8” loudspeaker systems designed specifically to better serve the needs of designers and
artists alike.
The ultra-compact AC15 and AC25 models include a 1" dome tweeter while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28 featuring JBL's Progressive Transition™ rotatable waveguides, offer the system designer a choice of coverage patterns of either 90° x 50° or 120° x 60° configurations allowing for both vertical and horizontal orientation of the loudspeaker enclosure.
artists alike.
The ultra-compact AC15 and AC25 models include a 1" dome tweeter while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28 featuring JBL's Progressive Transition™ rotatable waveguides, offer the system designer a choice of coverage patterns of either 90° x 50° or 120° x 60° configurations allowing for both vertical and horizontal orientation of the loudspeaker enclosure.
FEATURES
- 1 inch Exit Compression Driver with 90x90 degree Coverage PT Waveguide
- 165 mm or 6.5 inch LF transducer
- Ultra compact enclosure
- 600W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory
- Also available in WHITE (-WH)
SPECIFICATIONS
- Frequency Range: -10 dB, 55 Hz -20 kHz
- Frequency Response : +/-3 dB, 70 Hz -18 kHz
- Power Rating: 300W Continuous Pink Noise, 600W Program, 1200W Peak
- Impedance: 8O
- Coverage Pattern: 90x90 degrees
- Dimensions: H X W X D, 539.8 x 199.4 x 226.1mm or 21.3 x 7.8 x 8.9 inch
- Weight: 11.0 kg or 24.3 lb
