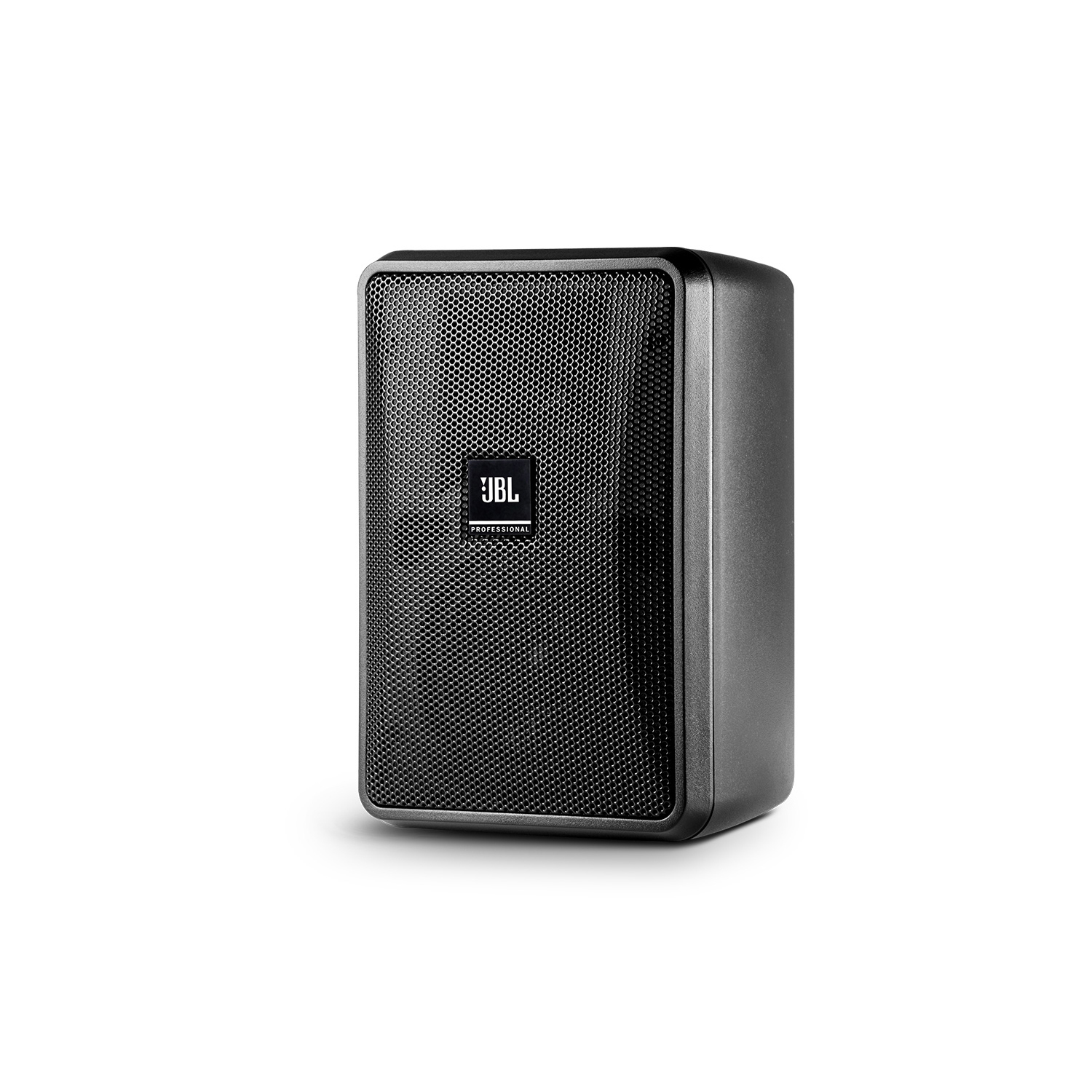

2 WAY 100W 3IN DUAL IMP SPEAKER W/BRK BLACK
CONTROL23-1
IN STOCK
Delivery in 2-3 days within NZ
2/3/5 Years WARRANTY
Ultra-Compact Indoor / Outdoor Background / Foreground Weather Resistant Speaker
The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a ...
The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a ...
Ultra-Compact Indoor / Outdoor Background / Foreground Weather Resistant Speaker
The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.
This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.
OUTDOOR CAPABILITY:
In addition to the driver designs contributing toward a high degree of weather resistance, the cabinet provides excellent endurance against sun, salt and moisture. Grilles are heavily zinc plated and finished in a tough, high-grade powder coating for rust resistance.
The optional MTC-23WMG-1 WeatherMax™ grilles are available for especially difficult environments and to break up driving rain. Connection is made via weather-capable screw-down terminals. (-WH)
The optional MTC-PC2 and MTC-PC3 panel covers are available to further protect the terminal compartment, providing a water-tight sealed gland-nut entrance (when used with round jacketed cable within the specified diameter range).
The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.
This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.
OUTDOOR CAPABILITY:
In addition to the driver designs contributing toward a high degree of weather resistance, the cabinet provides excellent endurance against sun, salt and moisture. Grilles are heavily zinc plated and finished in a tough, high-grade powder coating for rust resistance.
The optional MTC-23WMG-1 WeatherMax™ grilles are available for especially difficult environments and to break up driving rain. Connection is made via weather-capable screw-down terminals. (-WH)
The optional MTC-PC2 and MTC-PC3 panel covers are available to further protect the terminal compartment, providing a water-tight sealed gland-nut entrance (when used with round jacketed cable within the specified diameter range).
FEATURES
- 3” woofer with woven fiberglass cone
- 1/2” PEI diaphragm tweeter with fluid cooling
- Contemporary, high-design appearance
- Weather resistant enclosure and transducers
- Built-in InvisiBall® wall mount hardware
- Optional U-bracket and ceiling mount
- Wide 100° x 100° coverage
- 50 Watt power handling (100 Watt program) in direct 8O setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.
- Available in Black or White (readily accepts a variety of paints and finishes to match any decor)
SPECIFICATIONS
- Frequency Range (+/-10 dB) 70 Hz to 20 kHz
- Power Rating 100W Continuous Program (2 hrs)
- 50 W (200W peak), Continuous Pink Noise (2 hrs)
- 40 W (160W peak) Continuous Pink Noise (100 hrs)
- Maximum SPL 103 dB ave. Continuous Pink Noise (109 dB peak)
- Sensitivity 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
- Coverage Angle 100° x 100&dg
- Nominal Impedance 8 Os (THRU setting)
- Crossover Type 2nd order low-pass, 2nd order high-pass
- Transformer Taps 100V: 15W, 7.5W, 3.7W
- Dims (HxWxD) 200 x 141 x 111 mm; 141 mm deep total when mounted on InvisiBall wall-mount bracket.
IN THE BOX
- InvisiBall wall-mounting system), 4 mm x 80 mm hex key
