6.5IN COMMERCIAL CEILING SPEAKER
CSS8006BM
IN STOCK
Delivery in 2-3 days within NZ
2/3/5 Years WARRANTY

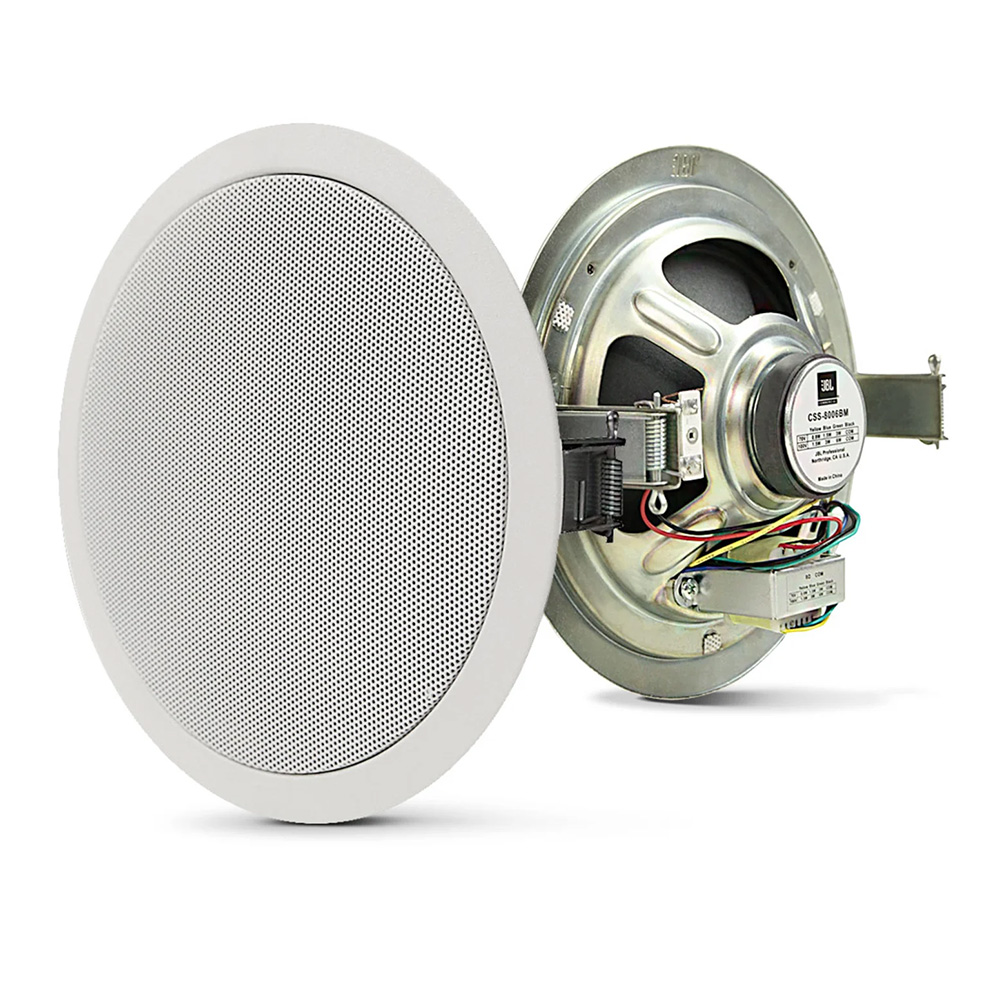

JBL Commercial CSS8006BM ceiling speaker provides excellent performance for paging and background music applications. High sensitivity provides maximum sound level, even at low tap settings.
JBL Commercial CSS8006BM ceiling speaker provides excellent performance for paging and background music applications. High sensitivity provides maximum sound level, even at low tap settings.
FEATURES
- Affordably priced, high-quality dual-cone ceiling speaker
- Pre-assembled speaker / transformer grille assembly
- Suitable for most paging or background music applications, including retail stores, restaurants, schools and other facilities
- Very high sensitivity providing maximum sound levels using minimal amplifier power
- Multi-tap transformer for 100V and 70V distributed speaker lines
- Easy blind-mount installation from below the ceiling with spring clamp
SPECIFICATIONS
- Frequency Range (-10 dB) : 70 Hz-20 kHz
- Power Capacity : 6 W (100 hrs)
- Sensitivity : 94 dB (1 W[2.83 V]), 1 m, 300 Hz~16 KHz, driver)
- Coverage (2 kHz) : 120º
- Nominal Driver Impedance : 8 Os
- Transformer Insertion Loss : 1.5 dB Maximum
- Transformer Taps : 100V: 6W, 3W, 1.5W 70V: 3W, 1.5W, 0.8W
- Cutout Size : 175 mm (6.89 in)
- Outside Dimensions (H x Dia) : 66 mm x 200 mm
- Net Weight (each) : 0.63 kg( 1.4 lb)
- Shipping Weight (each) : 0.85 kg (1.88 lb)
